A New Field Theory
Field75 HE V2 brings Field’s bold industrial design into a new era of speed and precision, with magnetic control, RT as low as 0.005mm, and 32K scan rate.
*P.S. Please ensure the keyboard is powered off before removing or inserting magnetic switches to prevent potential damage.
DESIGN
Tap the untapped

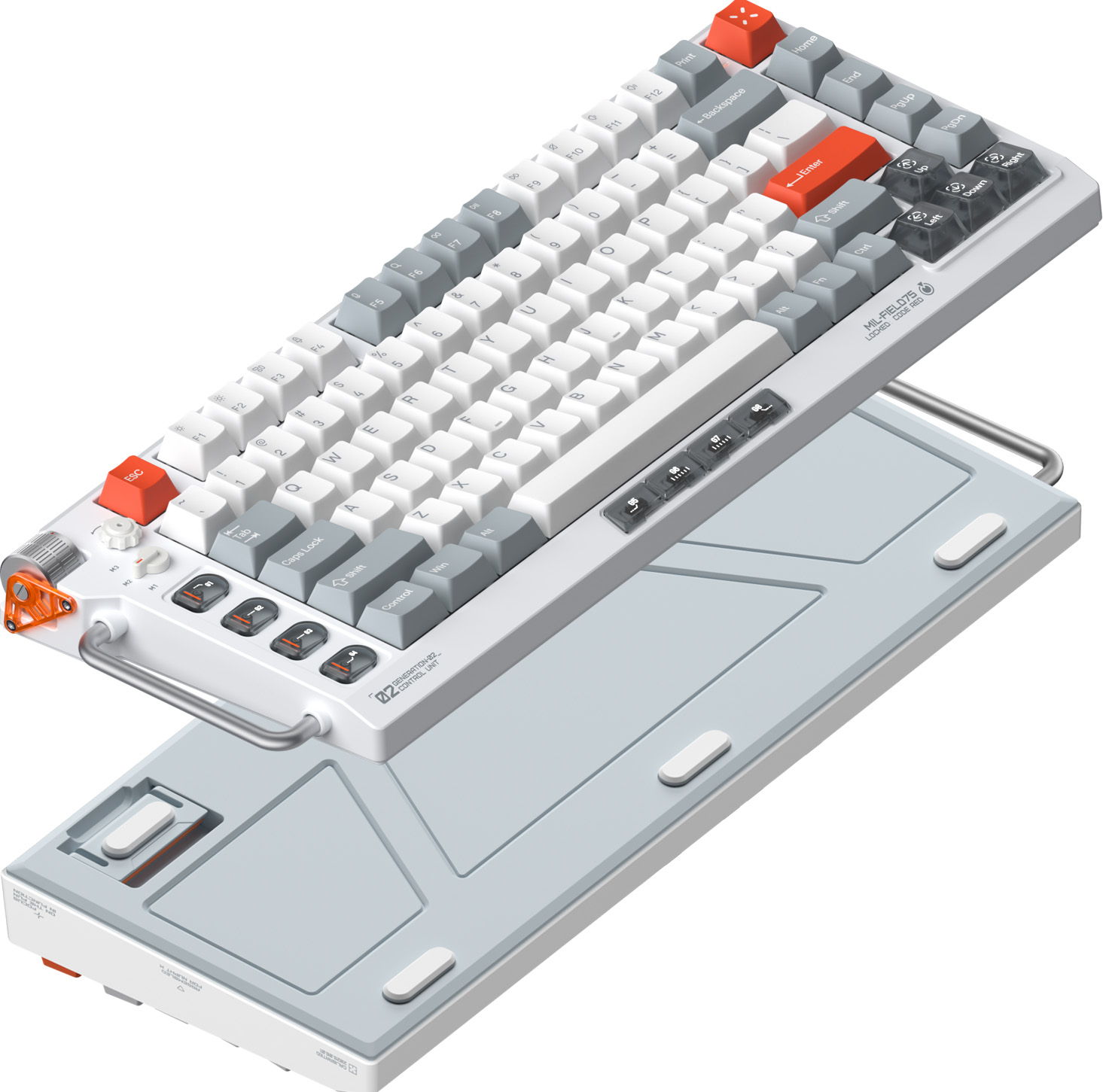

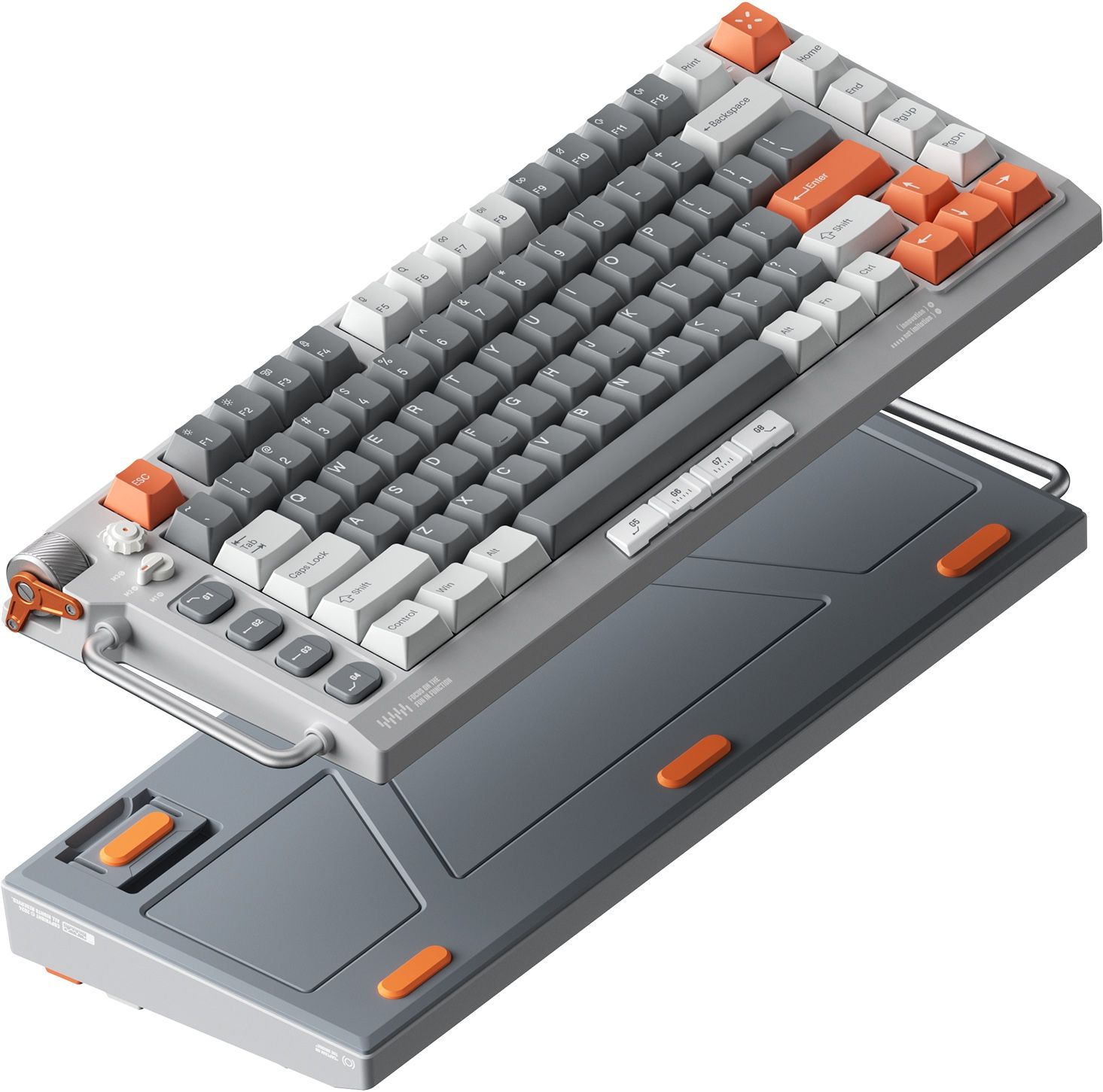

The Field75 HE V2 keeps the original’s offbeat sci-fi spirit, now expressed in a lighter, quicker design language. Semi-transparent details bring depth and flow to its asymmetrical 75% form, while the EM Lab keycap set—made for Field—completes the theme with lab-inspired contrast.

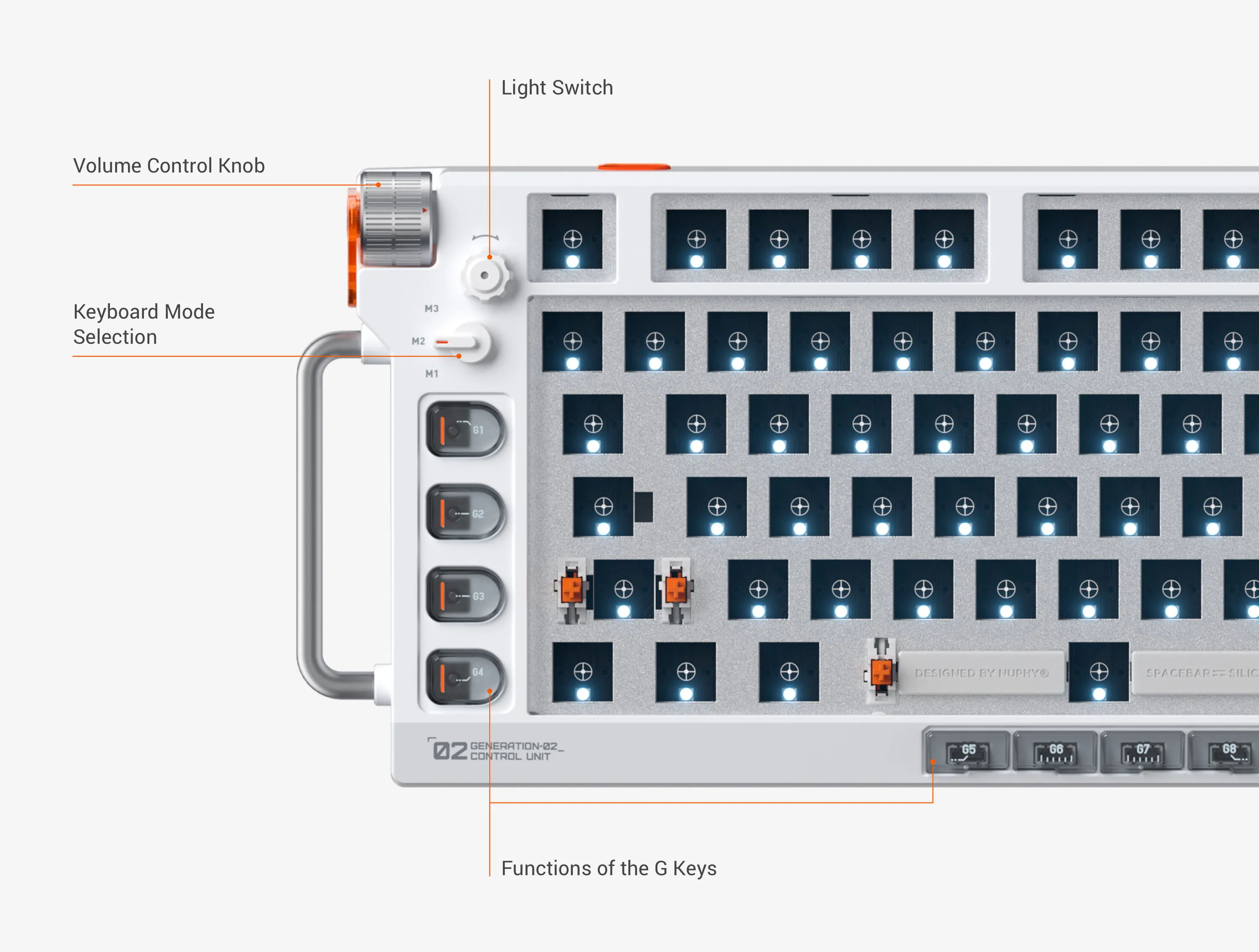

Layer-based buttons. Old-school controls, now fully layer-aware. Up to four functions per button, plus HE-specific features like the key trigger indicator and 2D light switch.
Wrist Rest and deskmats. A new electromagnetic interpretation of the classic twin-pieced twotone look, and the high information density Orbit deskmat should give you eyes plenty to feast while your arms rest.
HALL EFFECT
The magic of magnets
Speed starts before bottom-out. Magnetic switches separate actuation from tactile feedback, so inputs register faster, with less wasted travel and more precise control. When every millisecond counts, rapid trigger takes it further.
Ex-actuate

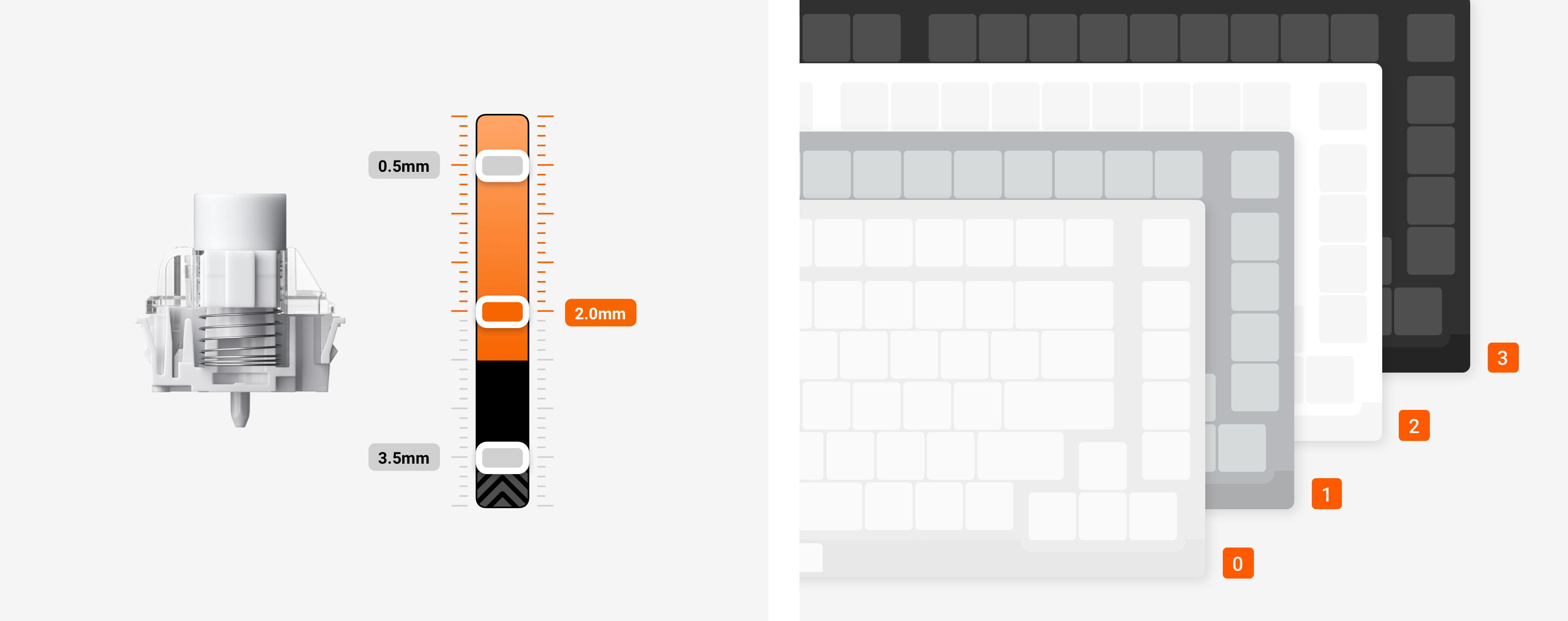

Set actuation your way—from ultra-light to deliberate. With fine travel resolution and a wide adjustable range, Field75 HE V2 adapts to fast shots, tight timings, and everything in between.
Rapid Trigger
With as little as 0.005mm of reset, Field75 HE V2 is ready to fire again almost instantly. Rapid Trigger keeps repeated inputs fast and fluid, while Rapid Trigger Pro lets one press and one release trigger two separate actions.
Dynamic Keystroke
Turn a single stroke into multiple commands. With up to four actions mapped across the downstroke and upstroke, Dynamic Keystroke gives combos, macros, and skill chains a more fluid, analog-like rhythm.
PERFORMANCE
Speed, End to End
Performance goes far beyond the switch itself. Field75 HE V2 is built to move every signal faster—with a 144MHz MCU, 8000Hz polling rate, just 0.45ms total latency, RT as low as 0.005mm, and a 32K scan rate that keeps every input sharp, stable, and immediate.

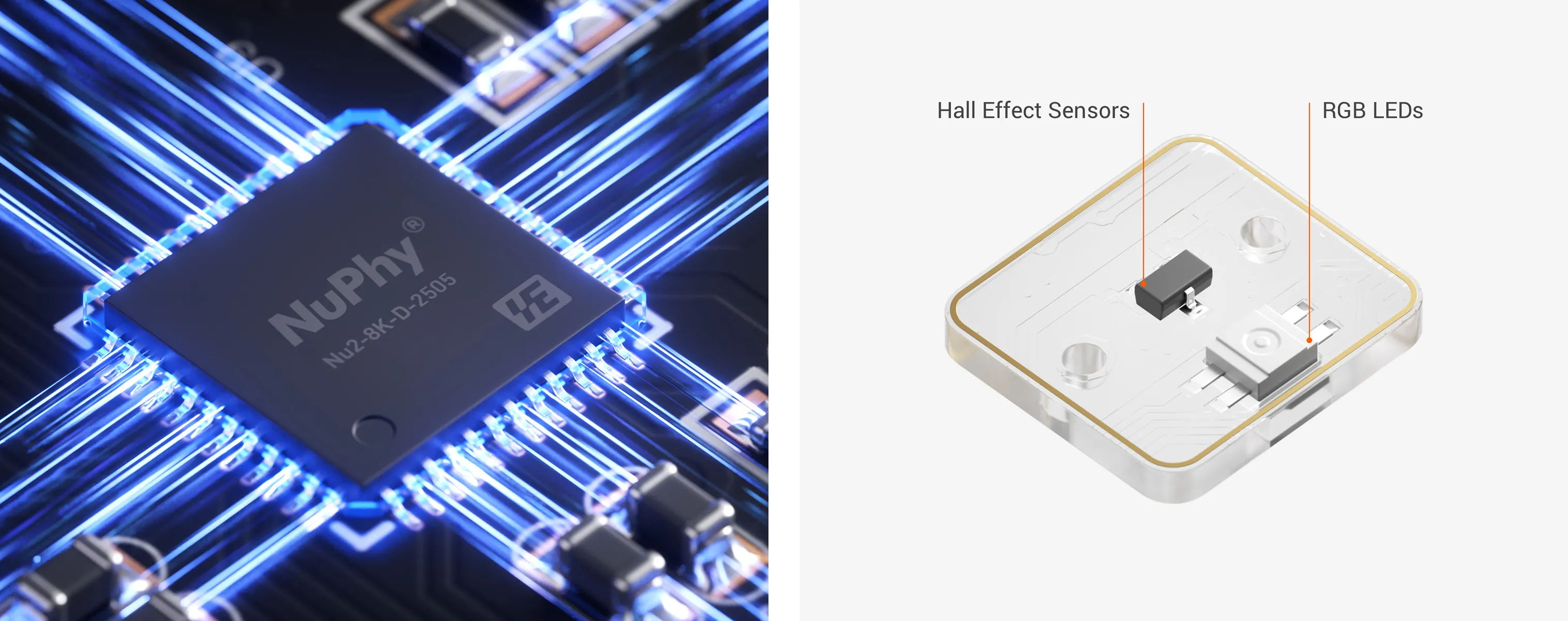

With greater processing power comes faster responses. All that 8000Hz polling needs serious processing power. That’s where Nu2 comes in: a 144MHz MCU with USB 2.0 support and 256KB of flash, built to keep the signal path fast and stable. In real-world tests, it helps bring total latency down to just 0.45ms—up to 5.3× faster than our 1000Hz wired keyboards.

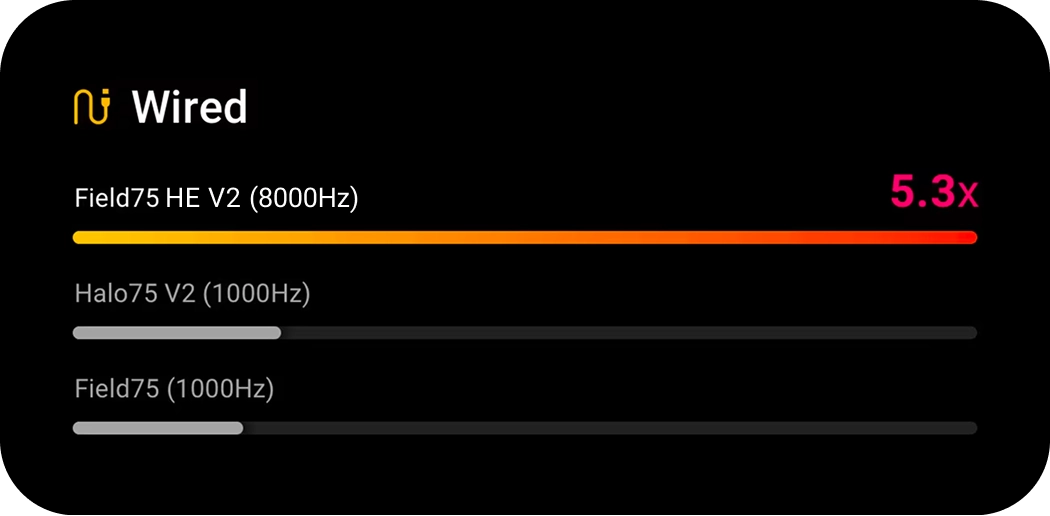

Connection Speed Comparison
* The latency tests are conducted with a CMSIS-DAP compliant hardware debug unit, by measuring the time difference between when the Enter key switch is closed, and the key press event is registered on the PC, and subtracting the instrument 's intrinsic delay(provided by the producer) from the measurement. The test results do not account for the pre-travel delays of the key switches, which varies for different types of switches, as the switch circuits are closed electronically during the tests.
Precision Makes It Real. Tiny adjustments only matter if they can be read reliably. Field75 HE V2 is engineered to keep interference, inconsistency, and assembly variation in check—from the top-mount structure to the electronics and quality control across production. The result is system-level precision with under 0.01mm of error, making fine actuation tuning genuinely usable.
Low latency starts at the sensor. Field75 HE V2 uses individually packaged Hall effect sensors powered separately from the RGB LEDs, helping them stay sensitive even under full lighting effects. Downstream, a self-developed filtering algorithm keeps the MCU reading every signal at full speed with industry-leading accuracy.
DRIVER
Within a finger's reach

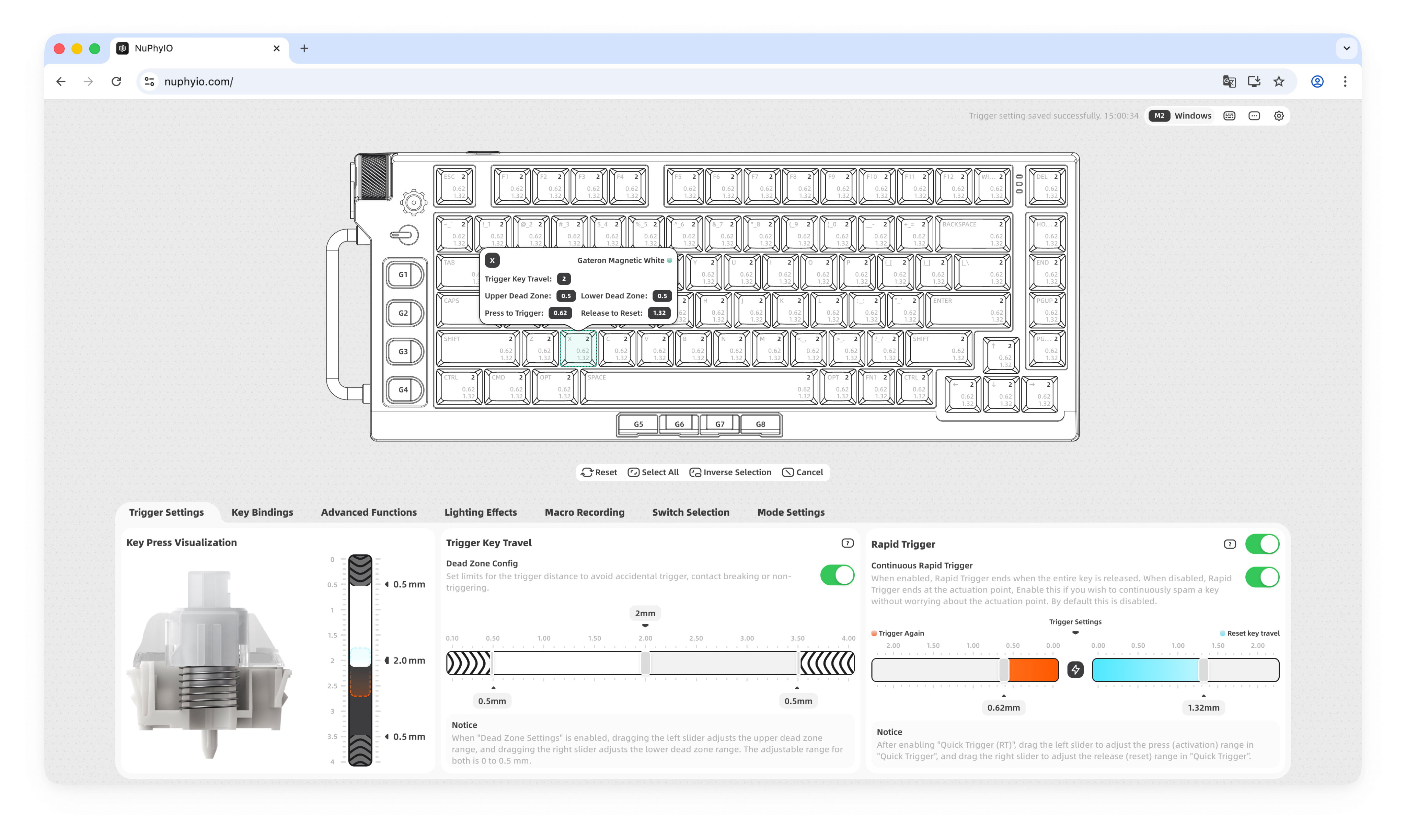

NuPhyIO makes magneto-mechanical tuning easier to reach and easier to read. Every performance parameter can be adjusted in real time, with instant visual feedback through tools like per-key rapid-trigger and sensitivity overlays, plus a bi-color actuation indicator bar. Global setups can also be saved as layers, ready to load whenever you need them.
Mac, Windows, Linux...you name it. NuPhyIO's key remapping and macro work seamlessly on all major desktop platforms, or any platform that supports Chromium-based browsers, making it even easier to customize Field75 HE to your heart's content.

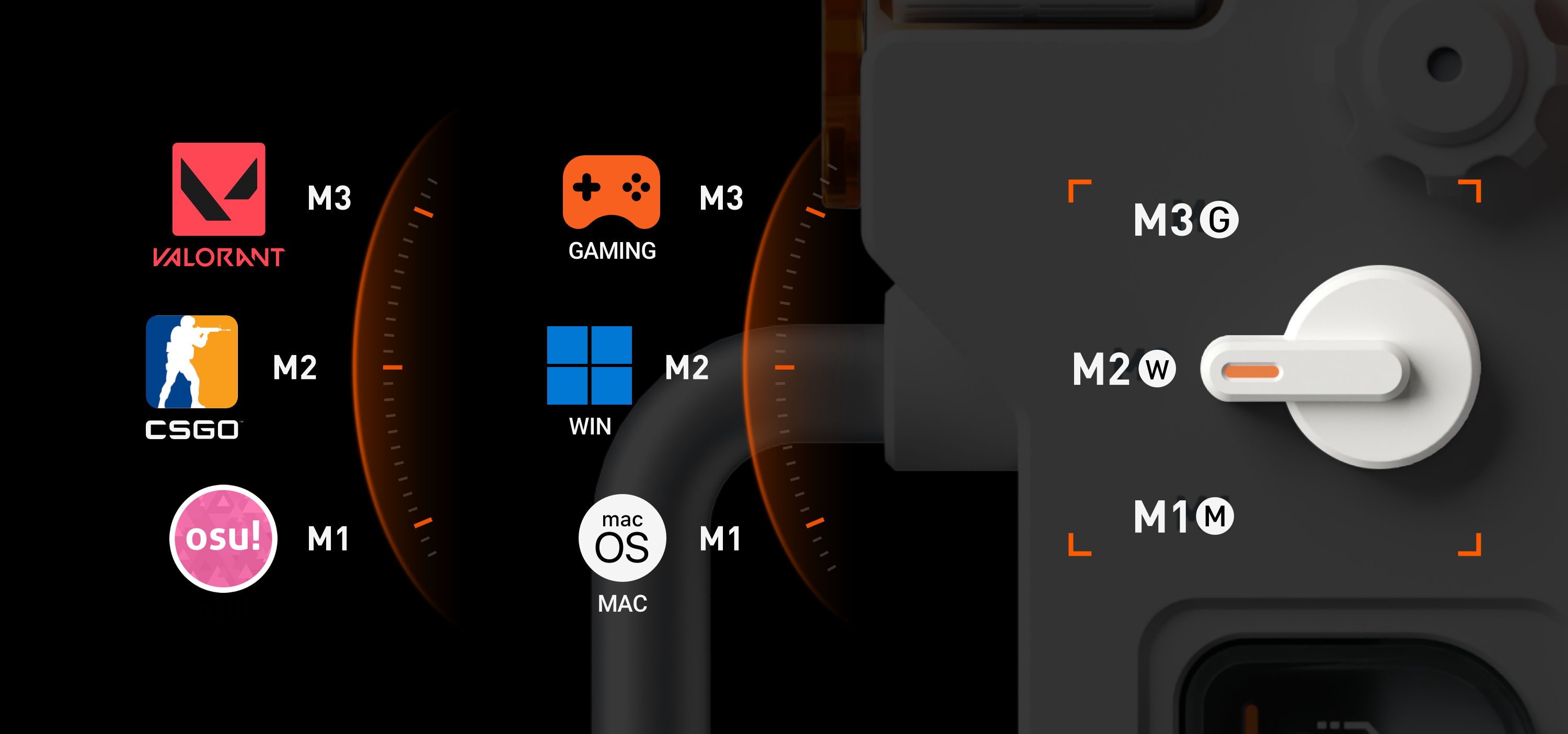

It is like profiles, but for pros. The new mode system brings layers, lighting, actuation, and sensitivity into one organized setup. Create different modes for different OSes or games, then switch between them instantly with the redesigned shifter.
See What You Tune. Dead zone, resolution, and other advanced settings are now visualized, animated, and adjustable in real time. Layers follow the same logic, with up to 12 supported overall and 4 in each mode.
TYPING FEEL
EM-motional support

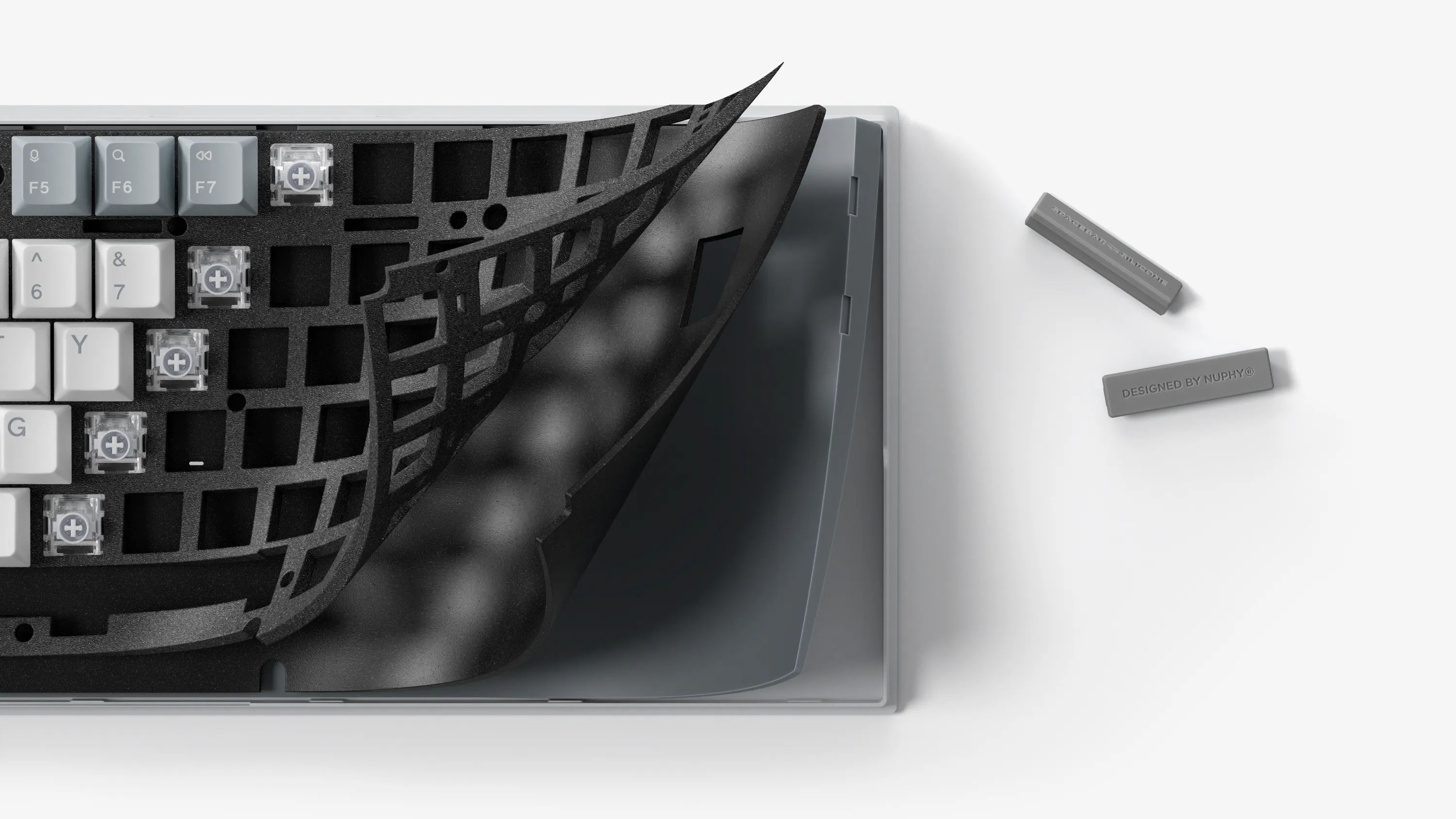

Magnetic precision narrows the structural options. Field75 HE V2 answers with an aluminum plate and top mount, with silicone buffering built into the plate to soften impact and help preserve sound and feel—without compromising travel accuracy.
Top Mount. Silicone caps and wraps around the mounting screws and other contact points help bring gasket-like sound consistency to the top-mount structure—without the deformation that can compromise magnetic travel accuracy.

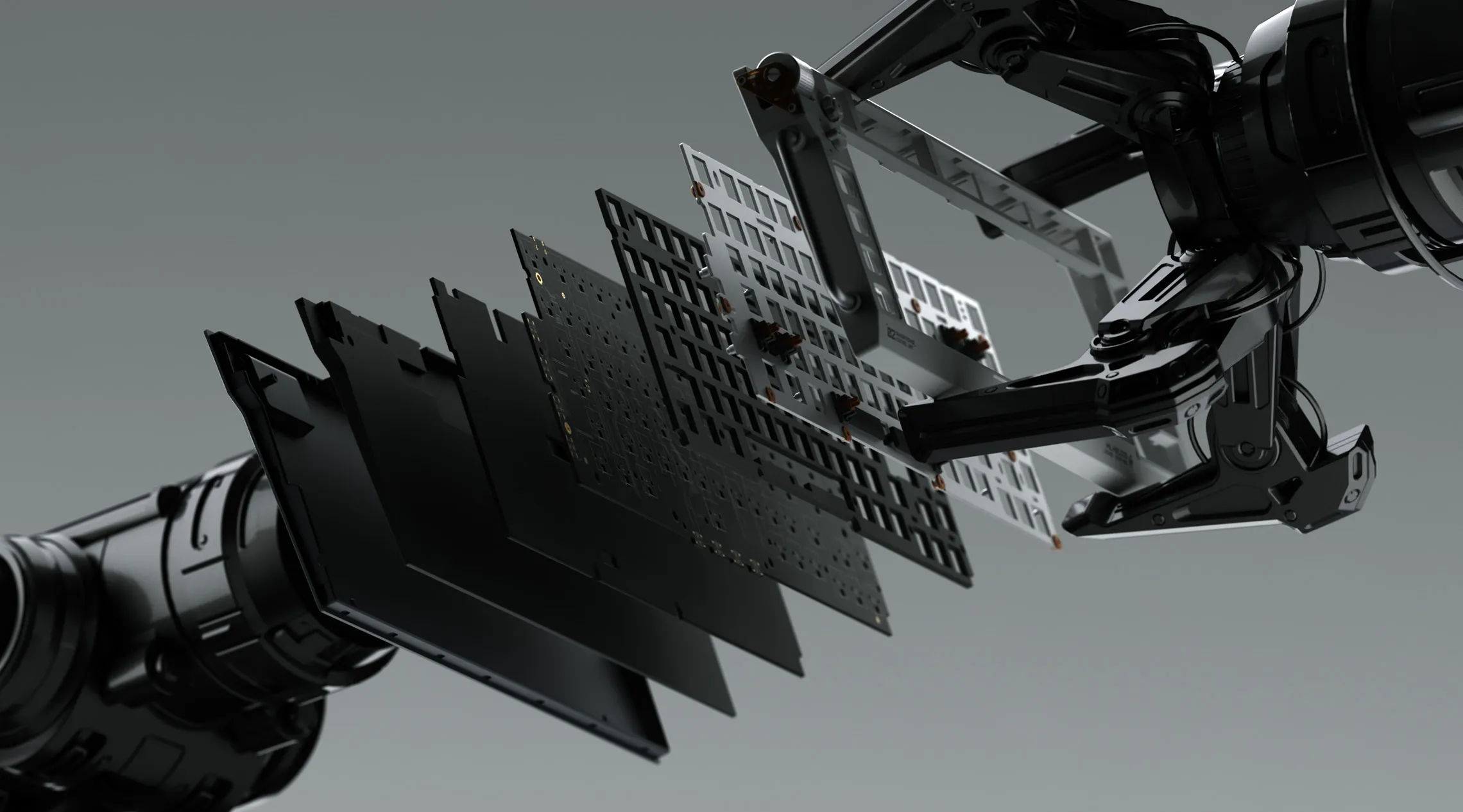

Sound engineering on sound foundations. A straightforward stack—two layers of Poron, one aluminum plate, and a silicone dampening sheet—gives Field75 HE V2 its clear, composed acoustic character. No tricks, just deliberate materials and tuning.
KEYCAPS
CAPtain on the bridge
Cherry profile gives Field’s keycaps their familiar comfort and control. Made from double-shot PBT, they deliver crisp legends, rich color, and a surface that resists grease and scratches to stay sharp over time.
MAGNETIC SWITCHES
Born for Magnetic

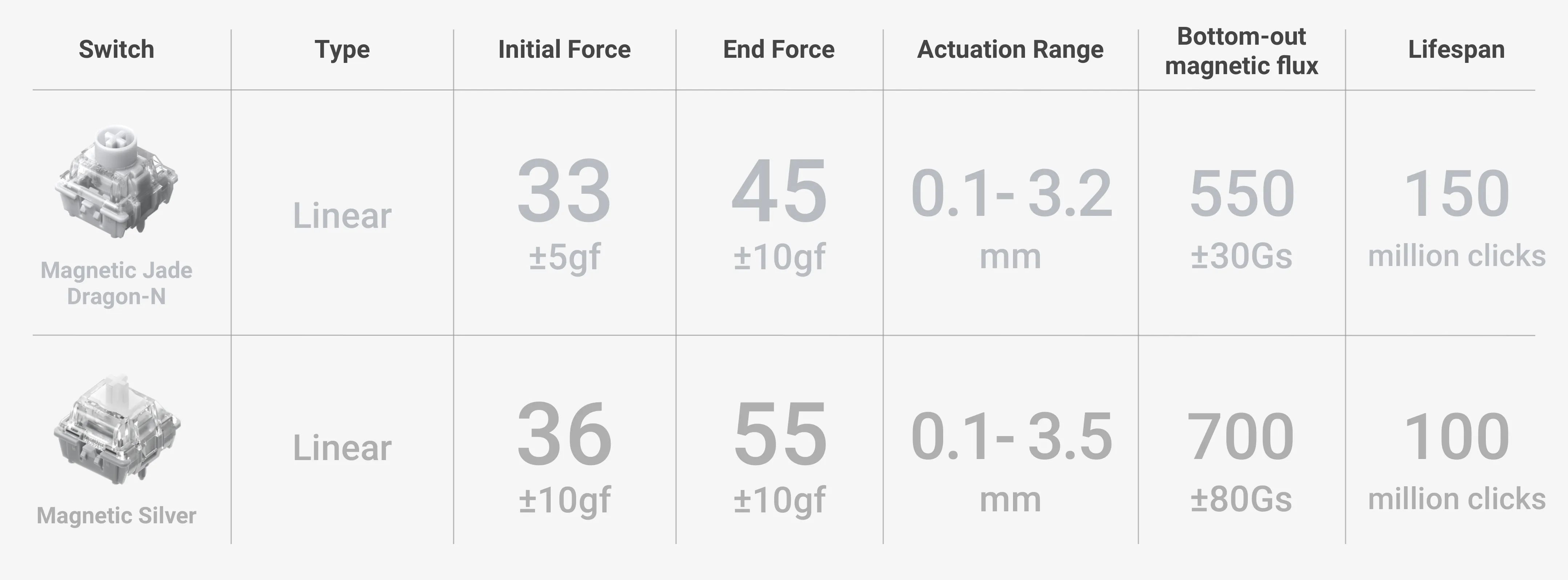

Jade Dragon-N is our new flagship magnetic switch, co-developed with Gateron. Its two-piece POM stem sharpens control and reduces accidental actuations, while the positive-lock mechanism and double back-covered structure bring lower wobble, smoother travel, and a cleaner acoustic profile.
IN THE BOX
PRE-BUILT KEYBOARD
1 x Field75 HE V2 Keyboard
1 x 1.5m (59 inches) Cable
TECH SPECS
SPECIFICATION
Layout: ANSI 75%
Number of Keys: 83
Customizable Buttons: 8
Gear-shaped Knob: RGB
Scroll Wheel: Volume
Scroll Wheel: Volume
Switch Type: Normal-profile Magnetic Switches
Stabilizer Type: Plate Mounted
Mount Type: Top
Power-Off Replaceable Switches Support: Yes
N-key Rollover Support: Yes
N-key Rollover Support: Yes
Backlight: South-facing RGB-LED
Backlight Modes: 20
Compatible System: macOS/Windows/Linux/Android/iOS
Operating Environment: -10 to 50℃
MCU: Nu2-8K-D-2505
CONNECTION
Wired Polling Rate: 8000Hz
PCB Scan Rate: 32000Hz
MATERIALS
Top Case: ABS
Bottom Case: ABS
Plate Material: Aluminum
SIZE AND WEIGHT
Long 142.8 mm (5.62 inches)
Wide 372.3 mm (14.66 inches)
Back Height 40.4 mm (1.59 inches)
Front Height 21.0 mm (0.83 inch)
Weight 1205 grams (2.66 pound)
Type Angle 4º/9º
Wide 372.3 mm (14.66 inches)
Back Height 40.4 mm (1.59 inches)
Front Height 21.0 mm (0.83 inch)
Weight 1205 grams (2.66 pound)
Type Angle 4º/9º
* Note: 1. Due to technical limitations, renderings of keyboards published by NuPhy are not accurate representations of the final products.
Which Field75 is right for you?
Field75 HE
From $159.95
PERFORMANCE
8000Hz Polling Rate
8000Hz Scan Rate
0.02mm RT
SWITCHES
Magnetic White
Magnetic Jade
HE FUNCTION
Adjustable Actuation
Rapid Trigger
Dynamic Keystroke
KEYCAPS
Cherry Profile
Field75 HE V2
From $179.00
PERFORMANCE
8000Hz Polling Rate
32000Hz Scan Rate
0.005mm RT
SWITCHES
Magnetic Silver
Magnetic Jade-N
HE FUNCTION
Adjustable Actuation
Rapid Trigger
Dynamic Keystroke
KEYCAPS
Cherry Profile
